Fiber Web Accumulator Systems for Stable, High-Efficiency Nonwoven Production

Introduction

Modern nonwoven fabric production depends on the stable coordination of several continuous processes. Opening and blending, feeding, carding, web forming, needle punching, thermal bonding, winding, cutting, and auxiliary handling equipment must work together as one production system. Although each machine has its own operating speed and control requirements, the web traveling between machines must remain continuous, evenly tensioned, and structurally stable.

In practice, production speeds are rarely identical at every stage. A winding machine may need to slow down temporarily, a downstream process may require a short adjustment, or an upstream web-forming machine may continue operating while a roll is being changed. Without a suitable buffer, these differences can cause excessive tension, web breakage, uneven density, wrinkles, production interruptions, and unnecessary material waste.

A fiber web accumulator provides an effective solution to this problem. By temporarily storing a controlled length of web and releasing it when required, the accumulator separates short-term speed fluctuations between connected processes. It acts as a dynamic buffer while helping maintain fabric tension, production continuity, and finished-product consistency.

The HYZL Fiber Web Accumulator is designed for nonwoven fabric production lines that require reliable web storage, automatic tension regulation, and synchronized operation with winding equipment. With a working width of 3,600 mm, stainless-steel guiding rollers, floating rollers, automatic tension control, and a storage capacity of up to 20 meters, it is suitable for a wide range of continuous nonwoven applications.

Manufactured by Changshu Hongyi Nonwoven Machinery Co., Ltd., the equipment reflects the company’s experience in designing and supplying individual machines and complete nonwoven production lines. The company’s broader product portfolio includes carding machines, needle punching machines, airlay systems, thermal bonding ovens, ironing machines, winding systems, and complete production lines for geotextiles, carpets, automotive materials, cleaning cloths, felt, and other nonwoven products.

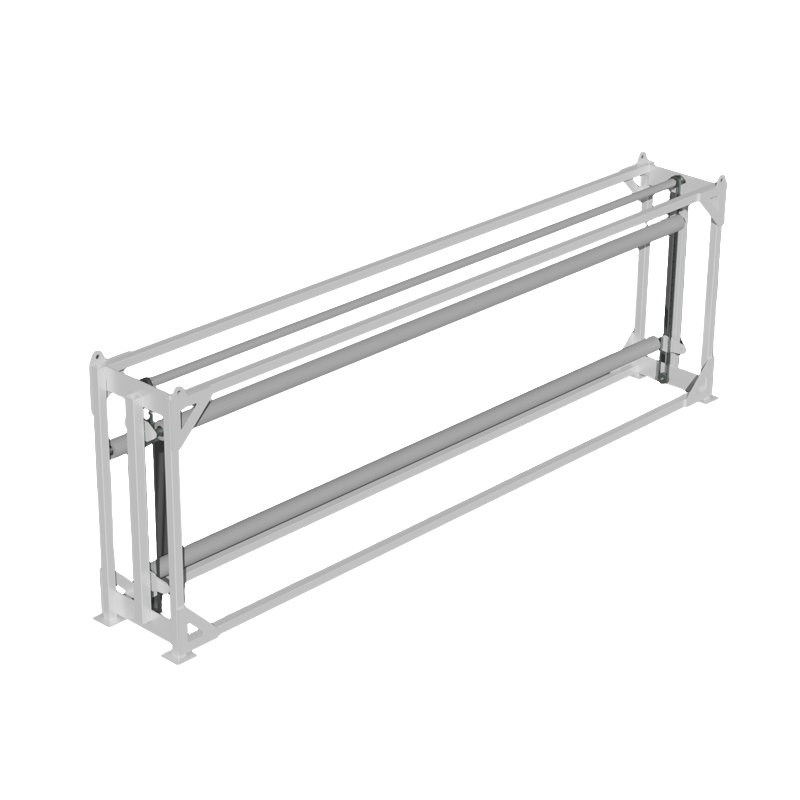

HYZL Fiber Web Accumulator

The Role of a Fiber Web Accumulator in Nonwoven Manufacturing

A nonwoven web is a continuous or semi-continuous layer of fibers formed before bonding, needling, thermal treatment, winding, or cutting. Depending on the production line, the web may be composed of polyester fiber, polypropylene staple fiber, recycled fiber, wool, jute, or blended materials. Its thickness, width, basis weight, fiber orientation, and tensile behavior can vary significantly according to the product specification.

Because the web is lightweight and comparatively flexible, it is sensitive to changes in line speed and tension. A sudden speed difference between two machines can stretch the web in the machine direction, compress it laterally, create folds, or cause a complete rupture. These problems become more serious when manufacturing heavy fabrics, high-GSM materials, delicate webs, or products with a wide working width.

The accumulator is installed between two production stages to create a temporary storage zone. During normal operation, the web passes through the guiding rollers and floating rollers at a controlled speed. When the downstream machine slows down, the stored web is released. When the downstream machine accelerates or the upstream machine continues operating during a short interruption, additional web is stored.

This operating principle provides several important benefits:

• It absorbs short-term differences in production speed.

• It reduces the possibility of web breakage caused by sudden tension changes.

• It allows the upstream and downstream machines to operate with greater independence.

• It supports smoother roll changes and winding operations.

• It helps maintain a more stable web structure.

• It reduces stoppages, trim waste, and manual intervention.

• It improves the overall utilization of connected production equipment.

A well-designed accumulator does not replace precise line synchronization. Instead, it complements the line control system by providing a practical mechanical buffer for temporary variations. This is especially valuable in production environments where continuous operation, high output, and consistent quality are essential.

Operating Principle of the HYZL Fiber Web Accumulator

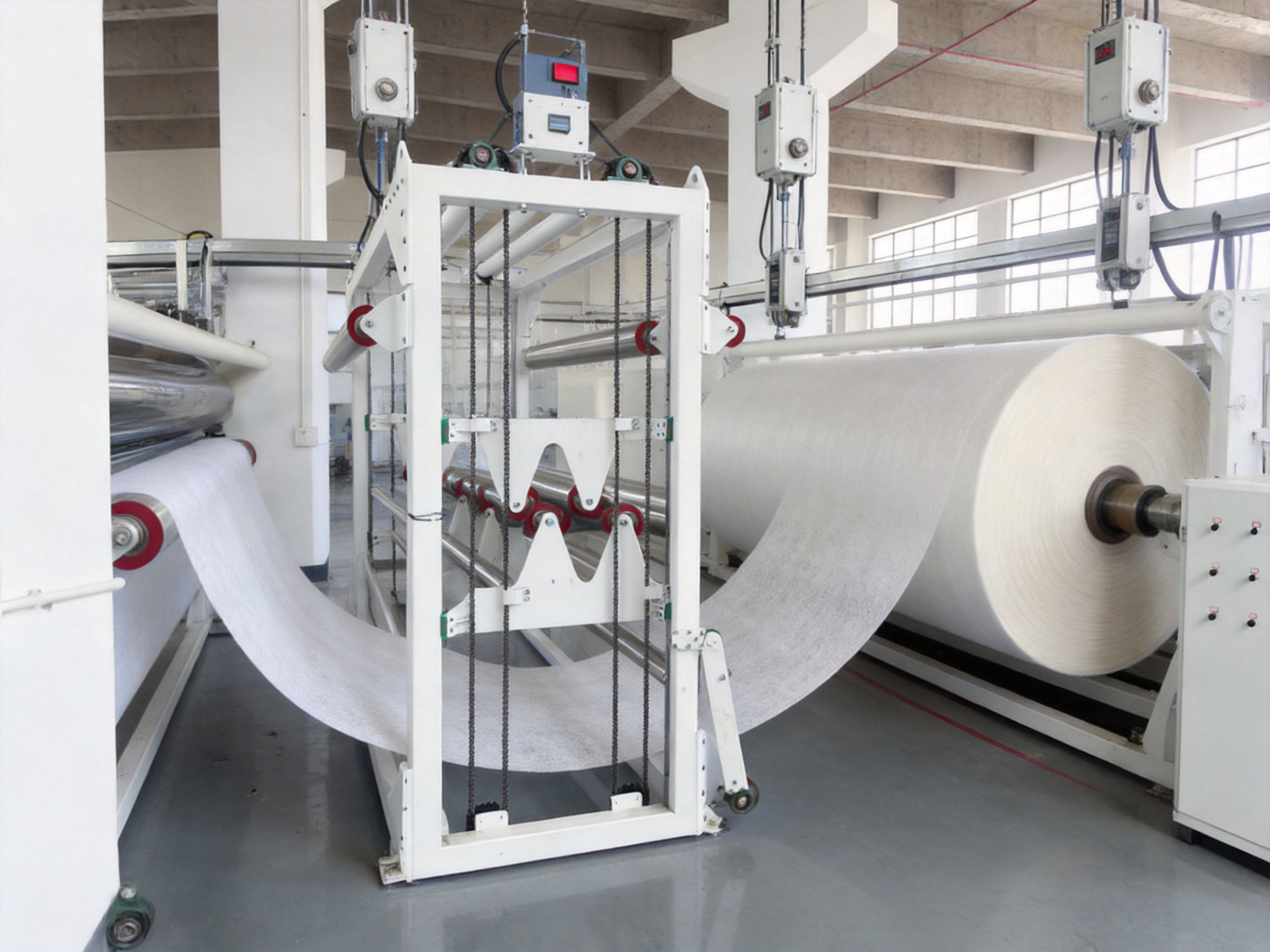

The HYZL Fiber Web Accumulator uses a dynamic storage arrangement in which upper and lower trolleys move up and down simultaneously. The web travels through a series of guiding and floating rollers. As the trolleys change position, the length of web stored inside the accumulator changes without requiring the entire production line to stop.

When additional web must be stored, the trolley arrangement creates more web-holding space. When web is required by the downstream process, the stored length is gradually released. This expansion and contraction process helps balance the material flow between connected machines.

The accumulator is designed to work in synchronization with the winding speed and does not use an independent power system for its primary operating movement. This configuration can simplify integration with the production line and reduce the need for a separate drive system. The equipment remains coordinated with the surrounding machines through line control, tension sensing, and automatic speed adjustment.

An automatic tension system adjusts the winder speed according to fabric tension. If tension rises beyond the desired operating range, the control system can make an appropriate speed correction. If tension falls, the winder response can be adjusted to prevent loose web formation. This automatic relationship between tension and winding speed is important for maintaining a stable roll structure.

The machine is equipped with eight floating rollers. These rollers provide additional contact and movement points for the web, helping distribute tension and support controlled web storage. The rollers also contribute to smoother web guidance as the storage position changes.

The use of simultaneous upper and lower trolley movement is advantageous because it can provide balanced storage action across the web path. A balanced structure helps reduce sudden pulling forces and supports a more consistent web path across the working width.

Main Technical Characteristics

The standard HYZL configuration has a working width of 3,600 mm. This width is suitable for many medium- and wide-width nonwoven fabric production lines. The equipment can also be adapted to customer requirements, with broader company specifications indicating that product net widths may be configured up to 8,500 mm depending on the production line, material, and engineering design.

The fabric guiding rollers have a diameter of 150 mm and a length of 3,600 mm in the standard configuration. The rollers are made from stainless steel. Stainless-steel surfaces are suitable for continuous web contact because they offer corrosion resistance, a smooth working surface, and good compatibility with different fiber materials.

The accumulator storage capacity is described as up to 20 meters. Actual storage capacity may depend on the number of roller positions, web thickness, web density, trolley travel, line configuration, and the customer’s production requirements. Some general equipment specifications may indicate a configured specification of no more than 10 meters for a particular arrangement. Customers should therefore confirm the final effective storage length in the technical proposal before ordering.

The equipment has an installed power specification of 18.7 kW for the stated configuration. Since the accumulator is synchronized with the winding and surrounding line equipment rather than operating as a fully independent production machine, the actual power distribution and control arrangement should be reviewed according to the complete line design.

Item	Standard or Available Specification	Production Significance
Model	HYZL	Fiber web accumulator for nonwoven production lines
Working width	3,600 mm	Supports wide web handling and continuous production
Guiding roller diameter	150 mm	Provides controlled web guidance and contact
Guiding roller length	3,600 mm	Matches the standard working width
Guiding roller material	Stainless steel	Supports corrosion resistance and smooth web travel
Storage capacity	Up to 20 m, depending on configuration	Buffers short-term speed differences and roll changes
Floating rollers	8	Supports tension distribution and controlled storage
Installed power	18.7 kW	Provides a reference for electrical and line planning
Operating mode	Synchronized with winding speed	Supports coordinated operation with connected equipment
Control function	Automatic tension system	Adjusts winder speed according to web tension
Raw materials	Polyester fiber or PP staple fiber	Suitable for common nonwoven fiber applications
Product GSM range	100–1,500 GSM, subject to line design	Provides application flexibility for different fabric weights
Certification	CE and ISO9001-related manufacturing qualification	Supports quality and compliance requirements

How the Accumulator Improves Production Stability

Managing Speed Differences

Continuous production lines often contain equipment with different response times. A carding machine, cross lapper, needle punching machine, oven, and winder may each have different acceleration, deceleration, and control characteristics. Even when all machines are linked through an automatic control system, temporary speed differences are unavoidable.

The accumulator absorbs these differences by storing or releasing web. This prevents a minor speed mismatch from becoming a major production problem. Instead of forcing every machine to stop immediately, the stored web provides operating time while the line control system corrects the difference.

Reducing Web Breakage

Web breakage can result from excessive longitudinal tension, sudden acceleration, uneven web thickness, incorrect roller alignment, or unstable winding. Once a web breaks, operators may need to stop equipment, remove material, reconnect the web, clean affected areas, and restart the line. The resulting downtime can be much longer than the original speed disturbance.

By providing controlled movement and temporary storage, the accumulator reduces the mechanical shock transmitted from one machine to another. The automatic tension system further supports stable operation by enabling the winding speed to respond to actual fabric tension.

Supporting Roll Changes

Roll changing is a common source of interruption in nonwoven production. During a roll change, the winding machine may need to slow down or temporarily stop while the upstream process continues to produce web. Without a buffer, the entire line may need to stop or the web may accumulate in an uncontrolled manner.

The HYZL accumulator provides a designated storage area for this transition. The upstream equipment can continue operating within the available storage capacity while the finished roll is removed and a new winding core is installed. Once the new roll is ready, the stored web can be released in a controlled way.

Maintaining Fabric Uniformity

Nonwoven quality is influenced by fiber distribution, web density, thickness, orientation, tension, and bonding conditions. Excessive or inconsistent tension can alter the appearance and physical characteristics of the fabric. It may also create width variation, edge distortion, wrinkles, or differences in basis weight across the roll.

The accumulator helps create a more stable mechanical environment. It does not independently control fiber distribution, but by reducing sudden tension changes and improving line coordination, it supports the upstream and downstream machines in maintaining consistent web conditions.

Advantages Compared with Basic Buffer Arrangements

Some production lines use simple roller loops, manual slack storage, or basic fixed-frame buffering methods. These arrangements may be sufficient for low-speed or narrow-width applications, but they can become less effective as production speed, web width, and material sensitivity increase.

The HYZL design offers several practical advantages over a basic uncontrolled buffer.

Controlled Dynamic Storage

A fixed loop provides a limited amount of passive storage, but it may not respond effectively to changing conditions. The HYZL accumulator uses moving trolley assemblies and floating rollers to provide controlled expansion and contraction. This enables the storage length to change in response to production needs.

Automatic Tension Response

Manual tension adjustments can be slow and inconsistent, particularly when the line is operating at high speed. The automatic tension system monitors the web condition and adjusts winder speed accordingly. This improves operating consistency and reduces reliance on frequent manual corrections.

Wide Working Width

A 3,600 mm standard working width allows the accumulator to serve a broad range of nonwoven applications. Wide web handling requires careful attention to roller rigidity, alignment, surface condition, and tension distribution. The stainless-steel guiding rollers and balanced trolley movement are intended to support stable handling across the full working width.

Integration with Existing Lines

Because the accumulator is synchronized with winding speed and designed as auxiliary equipment, it can be incorporated into complete production lines or used to improve the performance of an existing line. The final interface may be customized according to the upstream machine, downstream machine, control architecture, product width, and required storage length.

Reduced Independent Drive Complexity

The stated operating mode does not require an independent power system for the primary synchronized movement. This can simplify system planning compared with a fully independent machine that must be separately driven and coordinated. Electrical requirements still need to be assessed for the complete configuration, including control components and installed power.

Adaptability to Different Products

The equipment can be used in production environments handling polyester fiber, PP staple fiber, and other nonwoven materials, subject to engineering confirmation. Its application range may include lightweight webs, medium-weight fabrics, heavy needle-punched materials, thermal bonded products, and other continuous nonwoven structures.

Application Areas

Needle-Punched Geotextiles

Geotextile production frequently involves wide, heavy webs that must pass continuously through carding, cross-lapping, pre-needling, main needling, finishing, and winding stages. These materials can place considerable mechanical demand on the line because of their weight and thickness.

An accumulator can help manage the transition between web forming, needle punching, and winding. It is particularly useful when the downstream winding process requires temporary speed adjustments or when production must continue during a roll change.

Nonwoven Carpets and Floor Coverings

Carpet substrates and floor-covering materials often require stable width, consistent density, and controlled winding. Uneven tension can create wrinkles or distort the structure before later coating, printing, laminating, or backing operations.

The accumulator supports a steadier material path and provides additional flexibility when the line is connected to finishing equipment with different operating speeds.

Automotive Interior Materials

Automotive interior nonwovens may be produced from polyester, recycled fibers, polypropylene, or blended materials. Applications can include trunk liners, acoustic materials, interior padding, insulation, and molded composite substrates.

These materials often require consistent thickness and repeatable roll quality. A stable web-handling system can contribute to improved process control before thermal bonding, needling, laminating, or cutting.

Cleaning Cloths and Industrial Felts

Cleaning cloths, wiping materials, wool felt, jute felt, and industrial felts may have different fiber lengths, basis weights, and bonding requirements. Some products are relatively delicate and can be stretched easily, while others are heavy and resistant to movement.

The accumulator’s tension management and roller arrangement allow it to be considered for different product categories, provided that the material characteristics and final line speed are included in the design process.

Thermal Bonded Wadding

Thermal bonded products pass through heating and cooling zones where the web may expand, contract, or change mechanical behavior. The accumulator can be used before or after thermal treatment to manage line transitions and accommodate differences between the oven and winding sections.

For thermal bonded wadding, the selection of web path, roller surface, tension range, and storage capacity should be confirmed according to the product’s temperature and dimensional stability.

Engineering and Manufacturing Strengths

Product performance depends not only on the visible machine structure but also on engineering accuracy, fabrication quality, control integration, inspection, and after-sales support. Changshu Hongyi Nonwoven Machinery Co., Ltd. has more than 20 years of experience in the nonwoven machinery field and supplies both complete production lines and individual machines.

This experience is valuable when designing an accumulator because the equipment must work as part of a larger production system. A supplier with experience in carding, web forming, needle punching, thermal bonding, winding, and auxiliary equipment can better understand the operating requirements of different line sections.

Experience with Complete Nonwoven Lines

The company provides machinery for needle-punched geotextile lines, nonwoven carpet lines, airlaid waste felt lines, automotive interior material lines, needle-punched cleaning cloth lines, wool felt lines, and jute felt lines. This variety exposes the engineering team to different fiber properties, web structures, production speeds, and product requirements.

Such experience supports more practical accumulator design. The machine can be evaluated not as an isolated device but as a component that must match the upstream web-forming equipment and downstream winding or finishing machinery.

Customized Configuration

The configuration, color, working width, storage length, control method, roller arrangement, and line interface can be customized according to customer needs. This is important because nonwoven factories differ in floor layout, product range, raw materials, output targets, and automation requirements.

Customization may include matching the accumulator to a specific product width, adapting the web entry and exit height, modifying the control interface, adjusting the storage capacity, or integrating the machine into an existing production line.

Mechanical Fabrication

The machine structure is primarily manufactured from steel and iron mechanical materials. These materials provide the structural strength required for a wide working width and repeated trolley movement. Proper frame fabrication, welding, machining, alignment, and surface treatment are essential for long-term reliability.

Roller alignment is especially important. Even a small deviation can produce uneven tension across the web width. A professional manufacturing process should therefore include dimensional inspection, shaft alignment, roller rotation checks, and verification of the web path before shipment.

Stainless-Steel Web Contact Surfaces

The use of stainless steel for fabric guiding rollers provides a smooth and durable surface for web contact. Stainless steel is also suitable for production environments where cleaning, corrosion resistance, or material compatibility is important.

Roller surface quality must be considered together with roller balance and bearing performance. A clean, properly balanced roller reduces vibration and helps limit unwanted marks or tension fluctuations in the finished web.

Automatic Control Integration

The automatic tension system is a central feature of the accumulator. It allows the winder speed to be adjusted according to fabric tension rather than relying solely on a fixed speed command. This approach is more responsive to real production conditions, including variations in web thickness, roll diameter, material weight, and temporary line disturbances.

The exact sensors, programmable controller, inverter, communication method, and operator interface may be customized. During project planning, the customer should provide details of the existing control system so the accumulator can be integrated smoothly.

Quality and Compliance

The equipment is identified with CE and ISO9001-related certification information. These qualifications support structured quality management and provide a reference for international customers evaluating machinery suppliers. Compliance documentation, electrical standards, safety guarding, emergency stops, and customer-specific regulations should be reviewed during the quotation and acceptance stages.

Production Process and Quality Control Considerations

A reliable accumulator begins with correct engineering calculations. The required storage length should be determined from line speed, roll-changing time, acceleration and deceleration behavior, web weight, web tensile strength, and the expected duration of temporary interruptions.

After the design is confirmed, the frame and trolley assemblies must be fabricated according to approved drawings. Welding quality, frame squareness, mounting-point accuracy, and structural rigidity all affect final performance. Poor alignment may lead to uneven roller loading and web tracking problems.

Machined components such as shafts, bearing seats, roller supports, and trolley guides require dimensional inspection. The movement of each trolley should be checked for smoothness and parallel travel. Any binding or uneven resistance can affect web tension and increase mechanical wear.

Guiding rollers should be inspected for surface quality, concentricity, runout, and balance. Since the standard guiding rollers are 150 mm in diameter and 3,600 mm long, their rigidity and support arrangement are important. The roller design must prevent excessive deflection under operating loads.

The control cabinet and electrical components should be wired according to the approved electrical diagram. Safety functions, emergency stop circuits, sensor signals, tension feedback, and winder-speed commands should be tested before delivery.

Factory testing may include dry running, trolley movement tests, roller rotation tests, sensor calibration, control-system simulation, emergency stop verification, and trial web passage when production conditions permit. These inspections help identify problems before the equipment is installed at the customer’s factory.

Installation and Commissioning

Correct installation is essential for accumulator performance. The foundation must be sufficiently level and strong to support the machine frame and moving components. The equipment should be positioned according to the approved layout, with sufficient access for operation, inspection, cleaning, and maintenance.

The web entry and exit should be aligned with the connected machines. Incorrect height or lateral alignment may create edge movement, wrinkles, or unnecessary tension. Guiding rollers should be checked with appropriate alignment tools before production begins.

Electrical installation should be performed by qualified personnel. Power supply requirements, grounding, control-cabinet location, cable routing, emergency stops, and communication with the line controller should all be confirmed.

During commissioning, the equipment should first be operated at low speed without material. The technician can verify trolley movement, roller rotation, sensor response, and control signals. The web can then be introduced gradually while observing tension, tracking, storage movement, and winder response.

Trial production should cover the expected product range where possible. Lightweight and heavy materials may respond differently. The tension settings, acceleration rates, storage limits, and winder-speed response should be adjusted according to actual web behavior.

Operators should be trained to understand normal accumulator movement, safe access procedures, alarm conditions, storage limits, emergency stops, cleaning requirements, and basic troubleshooting. Well-trained operators can identify abnormal sounds, web tracking changes, or tension fluctuations before they develop into major failures.

Maintenance Requirements

Routine maintenance helps protect the accumulator’s mechanical accuracy and control performance. The maintenance schedule should be adapted to operating hours, web material, production speed, environmental conditions, and manufacturer recommendations.

Guiding rollers should be kept clean and free from fiber accumulation, oil, adhesive, or other contaminants. Contamination on a roller surface can affect web tracking and create marks on the fabric.

Bearings, trolley guides, shafts, and moving joints should be inspected regularly. Lubrication should be carried out with the correct lubricant and at the recommended intervals. Excessive lubrication can attract fiber dust, while insufficient lubrication can increase friction and wear.

Fasteners and structural connections should be checked for loosening or vibration-related movement. Wide machines operating at high speed may experience repeated mechanical forces, making periodic inspection important.

Tension sensors and control components should be checked for accurate signal response. If the displayed tension does not correspond to actual web behavior, the system may require calibration or inspection of the sensor, wiring, controller, or winder drive.

Emergency stops and safety devices should be tested according to the factory’s safety procedures. Guards and access doors should remain in place during normal operation. Maintenance should be performed only after the equipment has been stopped, isolated, and made safe.

Energy, Productivity, and Operating Economics

The economic value of an accumulator comes from more than its direct mechanical function. By reducing unplanned stoppages and supporting smoother roll changes, it can improve the utilization of upstream and downstream equipment.

When a web breaks, the cost includes material loss, labor for reconnection, cleaning time, machine restart time, and possible quality downgrading. A controlled storage system can reduce the frequency and impact of some of these events.

The automatic tension system may also help reduce waste caused by loose rolls, telescoping, wrinkles, or uneven winding. Better roll formation can improve subsequent storage, transportation, cutting, coating, and converting operations.

Because the accumulator is synchronized with the winding speed and does not require a separate independent power system for its primary synchronized operation, it can offer a practical approach to line buffering. However, energy performance depends on the complete line, including the winder, control system, motors, heating equipment, and operating strategy.

Customers evaluating the investment should consider the following factors:

• Current production speed and expected future speed.

• Average time required for roll changes.

• Frequency and cost of web breakage.

• Average material value per meter.

• Labor costs associated with manual intervention.

• Required product width and GSM range.

• Available floor space and installation conditions.

• Compatibility with existing control systems.

• Expected operating hours per year.

• Required level of automation.

Selection Guidance for Buyers

Before ordering a fiber web accumulator, buyers should provide detailed production information. The supplier needs to know the web material, product width, basis weight, line speed, upstream equipment, downstream equipment, winding method, roll diameter, and required storage time.

The customer should also clarify whether the accumulator is intended for a new complete production line or for modernization of an existing line. A new line allows the accumulator to be incorporated into the overall layout and control design from the beginning. An existing line may require additional structural supports, electrical interfaces, sensors, or changes to the web path.

Storage capacity should be discussed carefully. A stated capacity of up to 20 meters describes the maximum available storage under a particular configuration, but the usable capacity may vary according to the web thickness and trolley position. The customer should request a layout drawing and a description of the effective operating range.

The customer should also confirm whether the 3,600 mm working width is sufficient for the finished product, edge trim, and web-tracking requirements. If a wider machine is needed, the supplier can evaluate a customized design. General product information indicates that net widths up to 8,500 mm may be possible for certain equipment configurations, but the accumulator’s final structure must be engineered specifically for the requested width.

Control-system compatibility is another important consideration. The customer should specify the preferred PLC platform, communication protocol, voltage standard, safety requirements, tension sensor type, and winder interface. Early clarification can reduce commissioning time and prevent costly modifications.

Company Manufacturing and Service Capabilities

Changshu Hongyi Nonwoven Machinery Co., Ltd. is based in Changshu City, Suzhou City, Jiangsu Province, China. The company has more than 20 years of experience in the nonwoven machinery industry and serves customers in multiple international markets.

Its equipment has been supplied to more than 20 countries, including Mexico, Argentina, Brazil, Turkey, Algeria, Egypt, Bangladesh, Vietnam, Thailand, and other Asian markets. International experience can be beneficial because customers in different regions may have different electrical standards, safety expectations, product requirements, and installation conditions.

The company provides factory-direct and customized nonwoven machinery solutions. Its product range includes opening and blending equipment, feeding and carding equipment, web-forming and needle-punching equipment, thermal bonding and heat-setting equipment, airlay and winding systems, cutting machines, auxiliary equipment, and complete nonwoven fabric production lines.

This broad product range allows the company to support projects at different levels. A customer may purchase one auxiliary accumulator for an existing factory, a new winding section, or an entire production line designed for a specific nonwoven product.

The company emphasizes efficiency, reliability, quality, advanced technology, precision engineering, automatic control, energy-saving capabilities, and customization. These capabilities are particularly relevant to an accumulator because its success depends on accurate mechanical construction and reliable communication with the surrounding line.

After-sales service is listed as one year for the equipment. Customers should confirm the exact scope of warranty coverage, installation support, spare parts, remote assistance, technician service, response time, and operator training in the commercial contract.

Safety Considerations

A fiber web accumulator contains moving trolleys, rollers, shafts, and web paths that may create pinch points or entanglement hazards. Appropriate guards, warning labels, emergency stops, access controls, and safe operating procedures are essential.

Operators should never reach into the moving web path or attempt to remove trapped material while the machine is running. If a web break occurs, the line should be stopped according to the approved procedure before material is removed.

Maintenance personnel should isolate electrical power and stored mechanical energy before entering guarded areas. Trolley assemblies and moving components may continue to move or carry load after the main production command has been stopped unless the system has been properly isolated.

Safety interlocks and emergency stops should be inspected regularly. Any bypassed safety device should be treated as a serious fault and corrected before production resumes.

Safe operation also includes keeping the area around the accumulator clean and free from loose tools, fiber buildup, oil, packaging materials, and obstacles. Good housekeeping reduces both mechanical faults and workplace accidents.

Why the Accumulator Is an Important Line Upgrade

Nonwoven manufacturers often focus on the major production machines when planning a new line or modernization project. However, auxiliary equipment can have a significant influence on overall productivity. A high-capacity carding machine or needle-punching machine cannot deliver its full potential if the web repeatedly breaks at the winding section.

The accumulator addresses one of the most common challenges in continuous production: the need to connect machines that do not always operate at exactly the same speed. It provides a controlled margin for adjustment, allowing the line to respond to ordinary production events without immediate full-line stoppage.

For factories that are increasing output, adding wider products, introducing automatic roll changing, or handling more sensitive materials, a web accumulator can be an important step toward improved automation. It may also support more consistent quality by reducing the mechanical disturbances that affect the web before winding.

The HYZL configuration combines a wide working width, stainless-steel guiding rollers, eight floating rollers, automatic tension control, trolley-based storage, and line synchronization. These features make it a practical choice for manufacturers seeking a dedicated solution rather than a simple passive web loop.

Frequently Asked Questions

What is the main function of a fiber web accumulator?

A fiber web accumulator temporarily stores and releases nonwoven web material to compensate for short-term speed differences between connected production machines. It helps maintain continuous production, reduce web breakage, and stabilize fabric tension.

What is the standard working width of the HYZL accumulator?

The standard working width is 3,600 mm. Customized widths may be possible depending on the customer’s production line, product width, material characteristics, and engineering requirements.

How much web can the accumulator store?

The stated storage capacity is up to 20 meters. Actual effective capacity depends on the final mechanical configuration, web thickness, trolley movement, roller arrangement, and operating conditions. The customer should confirm the exact storage length in the technical specification.

Does the accumulator require an independent power system?

The stated operating mode is synchronized with the winding speed and does not use an independent power system for its primary synchronized operation. The complete installation still includes electrical and control requirements, with an installed power reference of 18.7 kW for the listed configuration.

How does automatic tension control work?

The automatic tension system monitors fabric tension and adjusts the winder speed according to the detected condition. This helps prevent excessive pulling, loose web formation, unstable winding, and sudden tension changes.

How many floating rollers are included?

The standard configuration is equipped with eight floating rollers. These rollers support web guidance, tension distribution, and controlled storage movement.

What material is used for the guiding rollers?

The fabric guiding rollers are made from stainless steel. The standard guiding roller diameter is 150 mm, and the standard roller length is 3,600 mm.

Which fibers can be processed with this accumulator?

The listed raw-material applications include polyester fiber and PP staple fiber. The equipment may also be considered for other nonwoven fibers, including blends, provided that the supplier confirms compatibility with the web structure and line conditions.

What product GSM range is associated with the equipment?

The general product information lists a GSM range of 100 to 1,500 GSM. The practical range depends on the complete production line, web strength, line speed, product width, roller configuration, and customer requirements.

Can the machine be integrated into an existing production line?

Yes. The accumulator can be designed for a new line or evaluated as an auxiliary upgrade for an existing line. Integration requires information about the upstream machine, downstream winder, web height, control system, working width, and available installation space.

What certifications are listed for the equipment?

The product information lists CE and ISO9001-related certification details. Buyers should request the specific certification documents and confirm that the final machine meets the standards required in the destination country.

What is the after-sales service period?

The listed after-sales service period is one year. The exact warranty scope, installation assistance, spare-parts policy, remote support, and service conditions should be confirmed in the purchase agreement.

Can the color and configuration be customized?

Yes. The product information indicates that configuration and color can be customized according to customer needs. Other possible customization areas may include working width, storage capacity, control interface, web height, roller arrangement, and line connection.

What information should be supplied when requesting a quotation?

A quotation request should include the material type, product GSM, web width, line speed, upstream and downstream machines, winding method, required storage time, roll diameter, plant layout, electrical standard, desired automation level, and whether the project is a new line or an existing-line upgrade.

Conclusion

A fiber web accumulator is a practical and important component for continuous nonwoven fabric production. It addresses the speed differences and tension fluctuations that can interrupt production, damage the web, and reduce finished-roll quality. By dynamically storing and releasing web, it creates a controlled buffer between production stages.

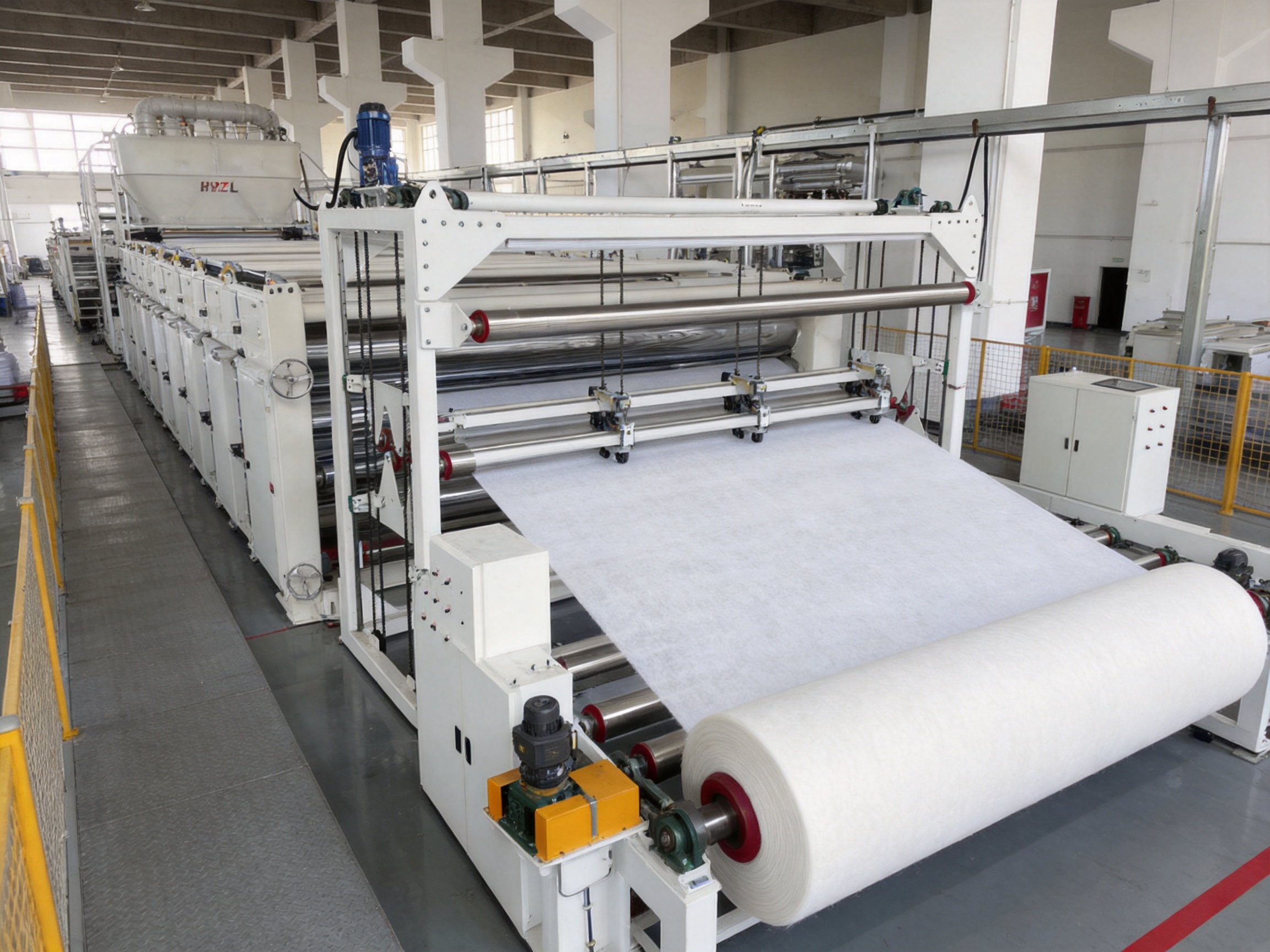

The HYZL Fiber Web Accumulator is designed with a 3,600 mm standard working width, stainless-steel guiding rollers, eight floating rollers, automatic tension control, synchronized winding operation, and storage capacity of up to 20 meters depending on configuration. These features support stable web transport, smoother roll changes, reduced breakage, and improved coordination between upstream and downstream equipment.

Its value is further strengthened by the manufacturing experience of Changshu Hongyi Nonwoven Machinery Co., Ltd. With more than two decades in the nonwoven machinery industry, experience supplying complete lines and individual machines, international project exposure, and customization capabilities, the company can evaluate the accumulator as part of a complete production solution.

For manufacturers producing geotextiles, carpets, automotive materials, cleaning cloths, felts, thermal bonded wadding, and other nonwoven products, the accumulator can provide a meaningful improvement in line stability. Final performance depends on correct engineering, accurate installation, proper tension settings, suitable maintenance, and effective integration with the complete production line.

When selected and configured according to actual product and process requirements, a fiber web accumulator can help manufacturers move toward higher automation, improved productivity, more consistent roll quality, and more reliable long-term operation.

References

1. Changshu Hongyi Nonwoven Machinery Co., Ltd., HYZL Fiber Web Accumulator product specifications and technical information.

2. Changshu Hongyi Nonwoven Machinery Co., Ltd., Nonwoven Machinery Product Portfolio and Company Information.

3. ISO 9001, Quality Management Systems—Requirements.

4. European machinery safety and conformity assessment principles applicable to industrial production equipment.

5. General engineering principles for nonwoven web handling, tension control, continuous winding, and production-line synchronization.

6. General maintenance and safety practices for roller-driven textile and nonwoven processing machinery.

Product: HYZL Fiber Web Accumulator
